Single vs Double Girder Overhead Crane Hook Height: What You Need to Know

Overhead cranes, widely used across various industries such as manufacturing, construction, and warehousing, are essential for lifting and transporting heavy loads. When selecting the right crane for your operations, one of the most important factors to consider is the hook height—the maximum height at which the hook can lift a load. The hook height plays a significant role in the crane’s efficiency, capability, and suitability for specific tasks. In this article, we will explore the differences between single girder and double girder overhead cranes, particularly in relation to hook height, and help you understand which option might be the best for your needs.

What is Hook Height?

Before diving into the differences between single and double girder overhead cranes, it’s important to define what hook height is. The hook height, also referred to as the lifting height, is the distance between the lowest point of the crane’s hook and the surface (or floor) that it is lifting the load from. This height determines how much vertical clearance the crane provides for lifting materials and equipment.

In general, the higher the hook height, the more flexibility the crane has in terms of lifting materials. The hook height can vary depending on the type of crane and its specific design, but it is a crucial factor to consider for applications that require lifting large or tall objects.

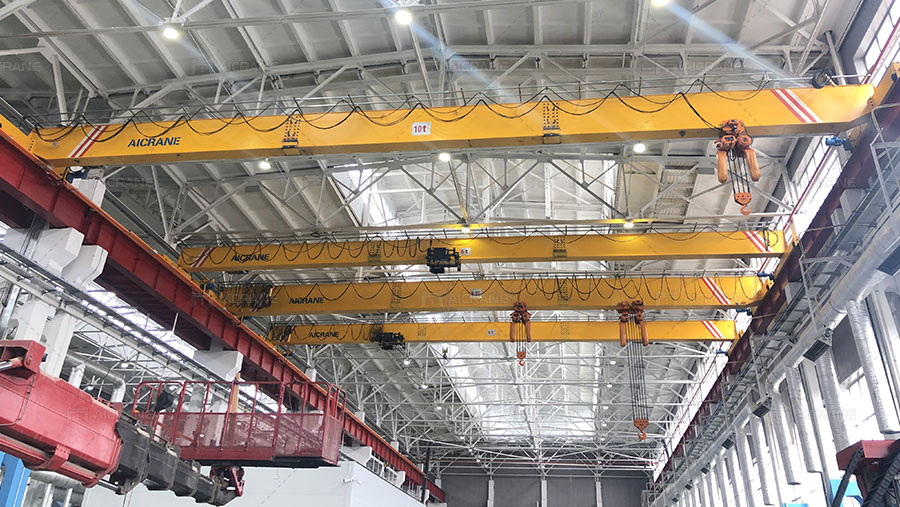

Single Girder Overhead Crane Hook Height

Single girder overhead cranes are a popular choice for lighter lifting operations and are often used in warehouses, workshops, and smaller manufacturing environments. They are composed of a single main beam (the girder) that runs along the length of the crane. The hook is suspended from this girder, and the crane operates along rails positioned overhead.

Key Factors Affecting Hook Height in Single Girder Cranes

1. Design Simplicity: A single girder overhead crane is generally simpler in design and has a lower profile compared to a double girder crane. This can limit the available hook height, as the crane’s structure does not offer as much vertical clearance as its double girder counterpart.

2. Maximum Lifting Height: The hook height in a single girder crane is often constrained by the design of the trolley and hoist. In single girder cranes, the hoist is mounted on the trolley, and the height at which the hook can lift a load is primarily dependent on the clearance between the hoist and the girder. As a result, the lifting height in a single girder crane is typically lower than that of a double girder crane.

3. Cost-Effectiveness: Single girder cranes are often more cost-effective due to their simpler design. This means that while you may have slightly less hook height compared to a double girder crane, you can achieve a good balance between cost and function for lighter-duty applications.

4. Space Limitations: The hook height in a single girder crane is more limited due to the shorter distance between the girder and the top of the hook. This can be a disadvantage in environments where significant lifting height is necessary. However, for general lifting tasks, the available hook height may be sufficient.

Advantages of Single Girder Crane Hook Heights

• Cost-Effective: The lower hook height requirement often means that a single girder crane is more affordable and efficient for lighter applications.

• Space-Efficient: The crane’s design requires less headroom, which can be an advantage in facilities where space is a concern, such as warehouses with lower ceilings.

• Ease of Installation: Because of the simpler design and lower headroom requirements, a single girder crane is easier and faster to install in locations with limited space.

Disadvantages of Single Girder Crane Hook Heights

• Limited Hook Height: The overall hook height is more restricted compared to double girder cranes, which may not be ideal for taller loads or larger lifting tasks.

• Lower Load Capacity: Single girder cranes are generally designed for lighter loads, for example, 1 ton to 20 ton overhead crane, which means they may not be suitable for industries or applications that require high hook heights and the ability to lift heavier materials.

Double Girder Overhead Crane Hook Height

Double girder overhead cranes, as the name suggests, consist of two parallel girders that support the crane’s trolley and hoist. The hoist travels along the girders, and the hook is suspended from the hoist. Double girder cranes are typically used in heavy-duty industrial applications, including steel mills, power plants, and large manufacturing facilities.

Key Factors Affecting Hook Height in Double Girder Cranes

1. Increased Vertical Clearance: One of the primary benefits of a double girder eot crane is that it provides more vertical clearance than a single girder crane. This is because the hoist is suspended from two girders rather than just one, allowing the hook to lift loads higher. The increased height offers greater flexibility when working with tall or heavy loads that require extra lifting capacity.

2. More Lifting Height Flexibility: In a double girder crane, the hook height can be significantly higher, making it suitable for lifting taller loads and larger equipment. This is a crucial factor when the application demands more clearance, such as in foundries, large warehouses, or assembly lines where large machinery needs to be lifted.

3. Design Complexity: While the double girder crane design offers more hook height, it is also more complex and typically more expensive than single girder cranes. The increased structure requires additional components, which can result in a higher overall cost for both installation and maintenance.

4. Higher Load Capacity: Double girder cranes are designed to handle heavier loads compared to single girder cranes. The increased hook height is often paired with a higher lifting capacity, making double girder cranes ideal for industries that require both vertical height and heavy-duty lifting power.

Advantages of Double Girder Crane Hook Heights

• Higher Hook Heights: The ability to lift taller loads with greater clearance is a key advantage, particularly in applications that require significant vertical movement.

• Heavy Load Capacity: Double girder cranes can typically handle much heavier loads, making them suitable for industries that deal with large and bulky materials, such as construction, metalworking, or manufacturing.

• Better for Large Facilities: The higher hook height and greater lifting capacity make double girder cranes ideal for large facilities, where higher headroom and the ability to lift heavy loads are crucial.

Disadvantages of Double Girder Crane Hook Heights

• Increased Cost: Due to the more complex design and higher lifting capacity, double girder cranes tend to be more expensive than single girder cranes.

• More Headroom Required: The increased vertical clearance requires more headroom, which may not be feasible in facilities with limited ceiling height.

• More Maintenance: With the added complexity and components, double girder cranes may require more maintenance and inspection over time compared to single girder cranes.

Which Crane Should You Choose?

The choice between a single girder and double girder overhead crane largely depends on the specific needs of your facility. Here are some factors to consider:

• For Lighter Loads and Smaller Facilities: If your operations primarily involve lighter lifting tasks and you have limited headroom, a single girder crane may be the best choice. It offers a lower hook height and is more cost-effective for smaller projects.

• For Heavier Loads and Taller Lifting Heights: If your application involves heavy lifting or requires a significant hook height, a double girder crane is a better option. It provides greater vertical clearance and is designed for more demanding lifting tasks.

• Space Considerations: In smaller facilities or warehouses with lower ceilings, a single girder crane may be ideal. On the other hand, double girder cranes are better suited for larger spaces where height and load capacity are a priority.

Conclusion

In summary, the hook height of a crane plays a crucial role in determining its suitability for specific tasks. Single girder cranes offer a simpler, cost-effective solution for lighter lifting tasks with more limited hook height, while double girder cranes provide increased vertical clearance and lifting capacity, making them ideal for heavy-duty applications. When choosing between the two, consider your facility’s ceiling height, load requirements, and overall budget to ensure that you select the crane that best suits your needs.
